DO3316H-121ML_ surface mount power inductors for excellent solderability

Name: DO3316H121ML surface mount power inductors for excellent solderability
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : DO3316H-121ML_

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 750pcs/reel

Product name : DO3316H-121ML_ SMT Power Inductors for excellent solderability

Feature : for excellent solderability

Weight : 0.95 – 1.25 g

Inductance : 0.12 - 4.7uH

Size : 9.91*13.21*6.35mm

DCR : 0.0015 - 0.018 Ohms

Contact Now

DO3316H-121ML_ SMT Power Inductors for excellent solderability

Description:

• Soldered self-leaded construction for excellent solderability.
• Very low DCR values and excellent current handling

Core material Ferrite
Terminations RoHS compliant tin-silver-copper over copper. Other
terminations available at additional cost.
Weight 0.95 – 1.25 g
Ambient temperature –40°C to +85°C with Irms current
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 750 per 13″ reel Plastic tape: 24 mm wide,
0.35 mm thick, 12 mm pocket spacing, 6.4 mm pocket depth

Part number	L (μH)	Percent tol	DCR max (Ohms)	SRF typ (MHz)	Isat (A)	Irms (A)
DO3316H-121ML_	0.12	20	0.0015	200	28	17
DO3316H-331ML_	0.33	20	0.002	200	20	16
DO3316H-681ML_	0.68	20	0.005	200	13	12
DO3316H-102ML_	1.0	20	0.006	100	11	10
DO3316H-152ML_	1.5	20	0.008	90	9.0	9.0
DO3316H-222_L_	2.2	20,10	0.011	80	7.8	7.4
DO3316H-272_L_	2.7	20,10	0.012	65	7.0	6.6
DO3316H-332_L_	3.3	20,10	0.014	60	6.4	5.9
DO3316H-392_L_	3.9	20,10	0.015	50	5.9	5.3
DO3316H-472_L_	4.7	20,10	0.018	45	5.4	5.4

DO3316H-121ML_ SMT Power Inductors for excellent solderability

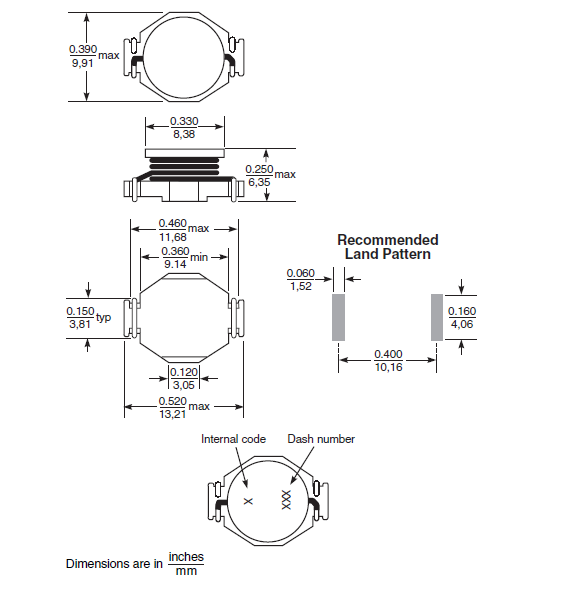

Shape and Dimensions:
